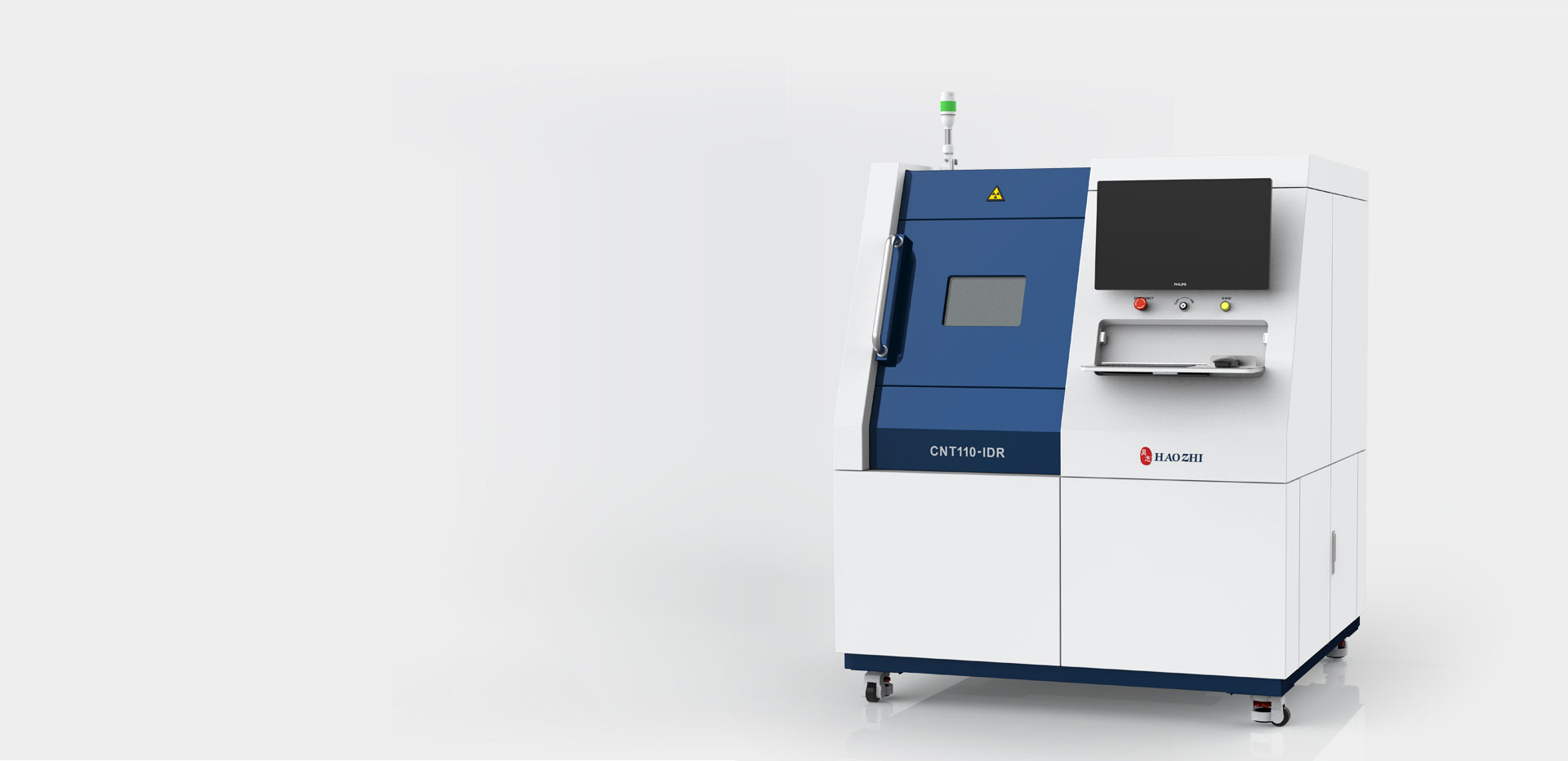

Self-developed carbon nanotube X-ray tube High Resolution Flat Panel Detector Supports dimensional and defect detection needs of consumer electronics productsMore
Suitable for different types of CE
Inner layer size
and defect detection
High Photon Efficiency Integrated X-ray Source
Support multi-angle 2.5D detection
Customized software functions available
The optimal resolution can reach 2.5μm
CE inner layer dimension and defect detection
| System parameters | Grayscale | 14/16bits |
|
| Resolution | 5μm |
|
|
| Dimensions | 1454x1360x1785mm |
|
|
| Weight | 1000kg |
|
|
| Stage size | 510x440mm |
|
|
| Maximum tilt angle | 60° |
|
| X-ray source | Operating Voltage | 90~150KV |
|
| Working current | 10~150μA |
|
|
| Focus size | 5~15μm |
Optional |
|
| Light pipe type | Closed tube |
|
| Detector | Detector type | Digital flat panel detector |
|
| Pixel size | 49.5μm | Optional higher level | |
| Number of pixels | 1300x1152 | Optional higher level | |
| Imaging area | 64x57mm | Optional higher level |
