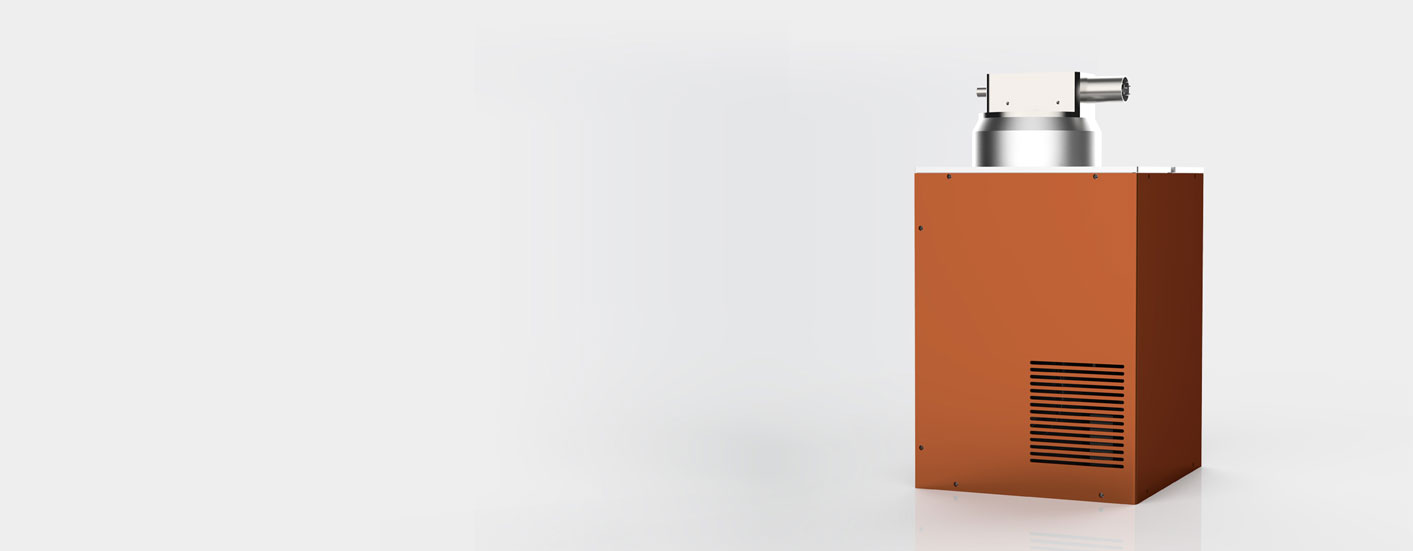

90kV tube voltage, The world's leading carbon nanotube-based cold cathode CT tube technologyMore
Carbon Nanotube Cold Cathode CT Tube Technology
Pulse on, low power consumption, long life
Effectively eliminate motion blur and artifacts
Reduce unwanted radiation doses
NDT X-RAY/Microfocus CT
PCB/PCBa, Semiconductor
New energy, 3C electronics
Material Analysis, Industrial Castings
| Specifications | System parameters | Characteristic | Unit |
| X-ray tube voltage setting range | 20 ~ 90 | kV | |
| X-ray tube current setting range |
10 ~ 120 (The maximum effective dose is equivalent to thermal products with the tube current of 300μA ) |
μA | |
| Tube voltage setting method | Command input operation via serial communication from an external control device | 1kV step | |
| Tube current setting method | Command input operation via serial communication from an external control device | 1μA step | |
| Operating mode |
Pulse mode: Pulse Exposure Time 5μs ~ 200ms Continuous mode: Continuous |
/ | |
| Irradiation window material | Beryllium (thickness: 0.5) | mm | |
| Focal size (nominal) | 5-15 (optional) | μm | |
| Maximum X-ray beam angle | 60~90° (Optional) | angle | |
| Serial interface communication method | Double full-duplex mode | - | |
| FOD | 10 | mm | |
| x-ray tube type | Closed tube (photon efficiency is more than 3 times that of traditional hot cathode) | - | |
| Cooling method | Oil cooler | - | |
| Input power | DC36 | V | |
| Power consumption | 30 | W | |
| Rated output | Continuously working | - | |
| Size | 173 x 170 x 305 | mm | |
| Weight | 11 | kg | |
| Operating temperature | 10-40 | °C | |
| Storage temperature | 0-50 | °C | |
| Working and storage temperature | Below 85 (no condensation) | % | |
| Pollution level | 2 | - |
Download the product manual to learn more
